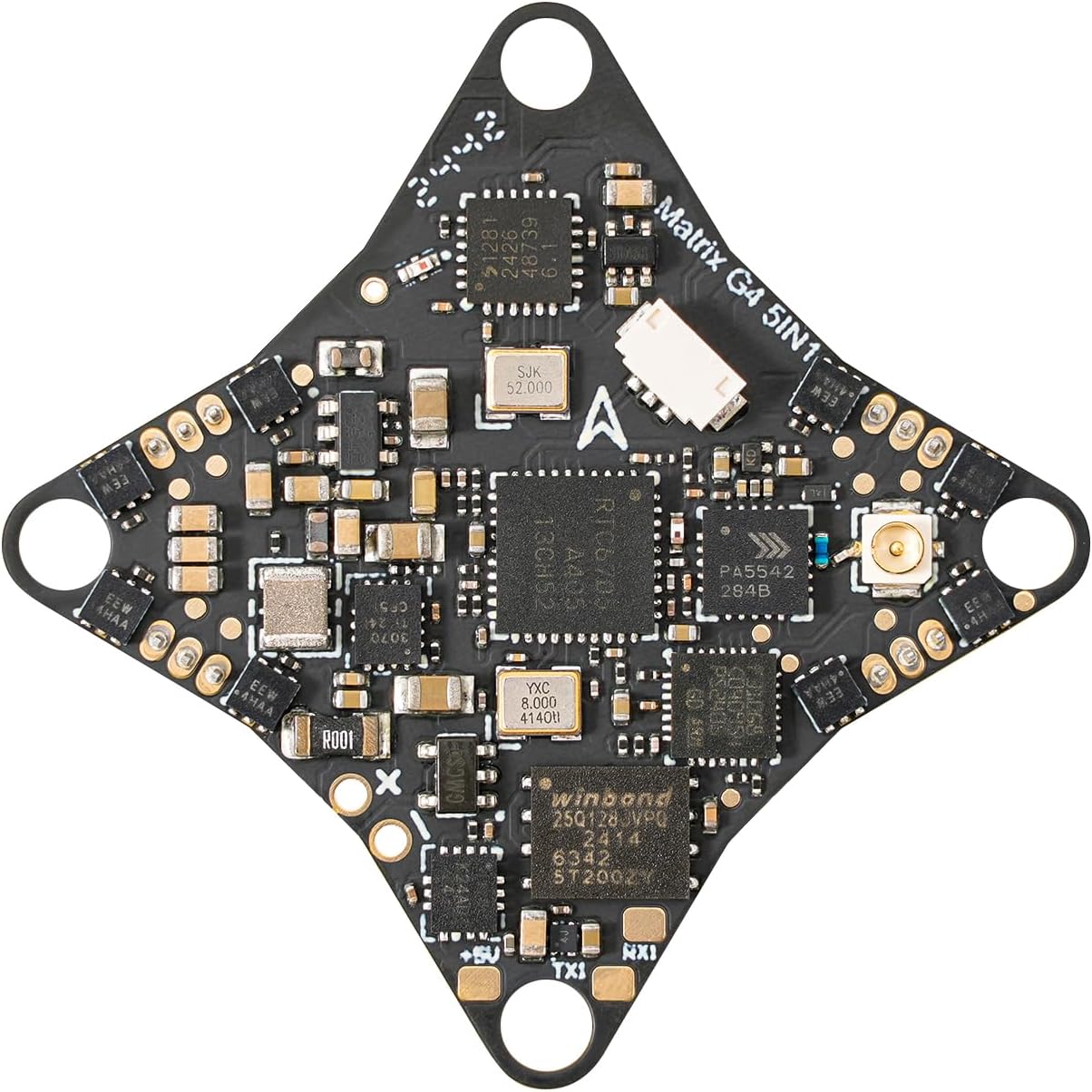

BETAFPV Matrix 1S Brushless Flight Controller, Highly Integrated 5IN1 FC Built-in Serial ELRS RX/VTX, with 1.0mm Thick Board, JST1.25 Pin for 1S FPV Racing Whoop Drone Quad like Meteor65/75 Pro

Description:

  • Built Tough: BETAFPV Matrix 1S Brushless FC features a robust 1mm-thick circuit board. While slightly heavier, this design enhances durability for everyday training
  • Simplified Installation: BETAFPV Matrix 1S Brushless FC is a true all-in-one flight controller with integrated FC+VTX+OSD+ESC+RX, plus standard motor plugs, making setup and maintenance remarkably easy. Ideal for FPV beginners, this design requires no welding and ensures a smooth installation experience
  • Upgraded Performance: Upgraded with the G473 processor, the Matrix 1S Brushless FC achieves a remarkable 55% increase in computing speed over the F411, delivering swift response for precise racing and complex freestyle manoeuvres
  • Premium Video Transmission: Equipped with a high-quality 5.8GHz VTX supporting up to 400, the Matrix 1S ensures stable, accurate transmission for both daily flying and competitive racing
  • Compatiblity Matrix or Air: The Matrix 1S Brushless Flight Controller is crafted for beginners and casual pilots, offering enhanced durability with its thicker board and no welding required—making it perfect for entry-level users. For advanced FPV pilots seeking a more responsive, race-oriented experience, the Air Brushless FC 5IN1 version is highly recommended
  • Crafted for advanced pilots, the ultra-thin (0.8mm) and lightweight Air FC is engineered for maximum agility and race-winning performance. It is the definitive choice for pushing the boundaries of FPV flight. For newcomers to FPV or those flying for entertainment, the Matrix FC is the ideal alternative. It offers enhanced durability, requires no welding, and provides a more beginner-friendly experience

  • Note
    FCs are covered for manufacturer defects. Issues arising from user errors, physical crash damage, damage during installation or dismantling, modifications, power surges, electrical fires, or water exposure are not covered.
    VTX Power: Higher VTX power consumes more energy and generates more heat, reducing flight time. For better flight time in indoor scenarios, use 25~100mW power.
    VTX Antenna: Connect and install the VTX antenna before powering on the FC. Alternatively, set transmission power to 0 to avoid burnout.

    Specifications
    FC
    MCU: STM32G473CEU6
    Gyro: ICM42688P
    Blackbox memory: 16MB
    Sensor: Voltage & Current
    BEC: 5V, Max. 3A
    UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
    BetaFlight OSD: AT7456E
    ESC: 5A continuous
    RX: Serial ELRS 2.4GHz (V3.4.3)
    VTX: 5.8GHz 48 channels, Max. 400mW
    FC firmware: Betaflight_4.5.0_BETAFPVG473
    USB port: SH1.0-4Pin
    Motor plug: JST1.25
    Battery connector: BT2.0
    Mounting hole size: 26mm x 26mm
    Weight: 3.92±0.1g
    ESC
    Power input: 1S Only
    Current: 5A continuous, 8A peak
    Operating temperature: -10℃~+80℃

    ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
    Digital signal protocol: DShot300, DShot600
    VTX
    Output power: 25/100/200/400/PIT
    Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
    Channel SEL: SmartAudio2.0
    Modulation type: FM
    Frequency control: PLL
    All harmonic: Max -50dBm
    Frequency stability: ±100KHz (Typ.)
    Frequency precision: ±200KHz (Typ.)
    Channel carrier error: ±1.5dB
    Antenna port: 50 Ω

    Recommended Parts
    Drones: Meteor65 Pro, Meteor75 Pro
    Frames: Meteor65 Pro, Meteor75 Pro
    Motors: 0702/0702SE, 0802/0802SE, 1102

    Package
    1 * Matrix 1S Brushless Flight Controller
    1 * Type-C to SH1.0 Adapter
    1 * SH1.0-4Pin Adapter Cable
    4 * M1.2*4 Self-tapping Screws
    4 * M1.4*4 Self-tapping Screws
    4 * Shock Absorbing Balls
