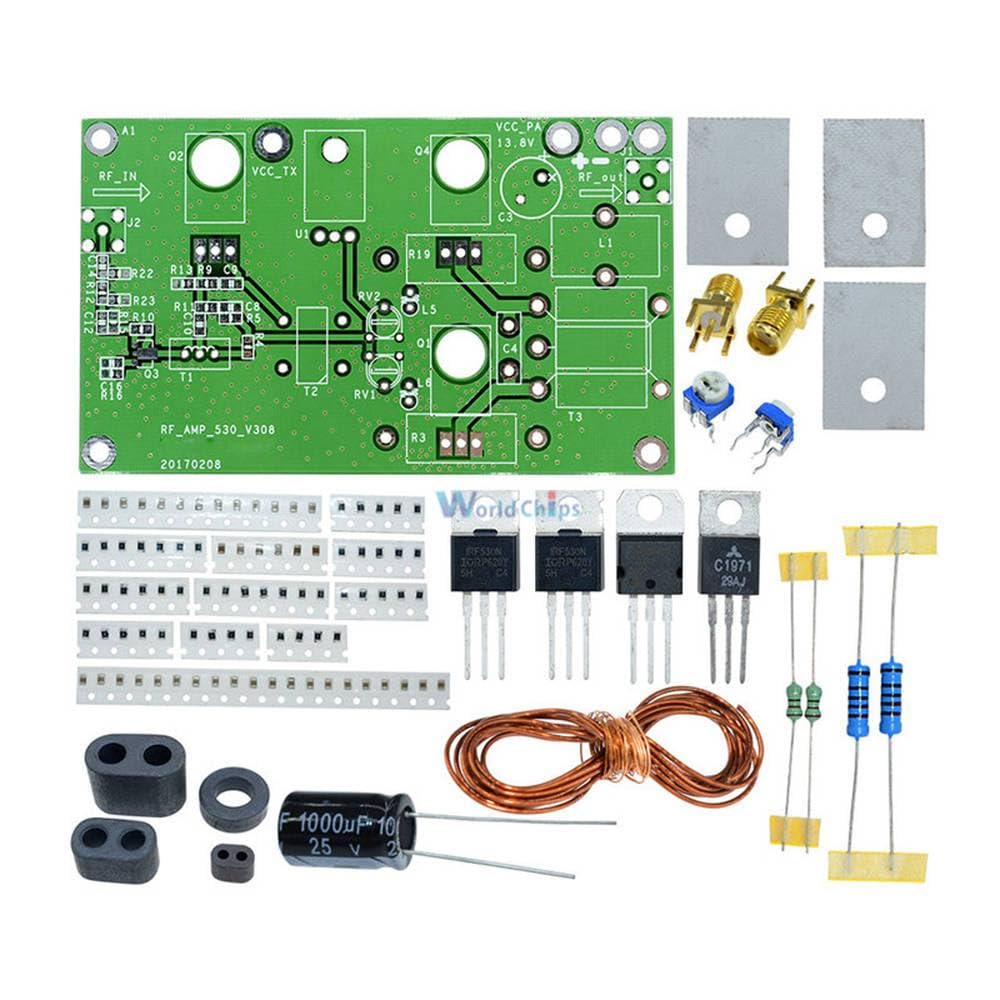

Generic 45W SSB Linear Power CW FM HF Radio Transceiver Shortwave DIY Kit

Description:

  • 45W SSB Linear Power CW FM HF Radio Transceiver Shortwave DIY Kit

  • | |
    Features:
    Common used in SSB, AM linear power , the CW, FM, power , and the most basic signal amplification.
    Easy installation and operation.
    Low noise, high cost performance, very suitable for DIY enthusiasts.
    Our product is sent by parts, which not include heat radiator, please help yourself to assemble.
    The overall gain more than 40db, which is 10000 times, 10W input 1mW output.
    Specifications:
    Input Power: 1-5mW
    Output Power: 45W (Max.)
    Input Voltage: DC 13.8V 10A or higher
    Max. Output Power: 57W (not with cooling fin)
    Output Impedance: 50 ohm, can according to need to adjust between 10-200 ohm
    Input Frequency Range: 3M-30MHz(HF channel)
    Input/Output Interface: Standard SMA interface, external thread hole
    PCB Size: 60 * 100 mm
    Diameter of Located Hole: 3mm
    Color: Green
    Package Size: 13 * 8 * 1.5cm
    Package Weight: 58g / 2.07oz
    Notes:
    -The following data to test in person, these data sheet is in a large heat sink can withstand 200W above measured, there is not enough cooling capacity, please do not limit, it's not safe.
    -The upgrade board test data,so it can be used for all HF Channel,
    -In 3 to 5 MHz this period, because of the low frequency, small inductance, lead to the gain has a certain loss, the output power is lower than 7 MHz this point.
    3.500MHz 54W
    7.050MHz 56W
    10.000MHz 57W
    14.270MHz 55W
    21.400MHz 41W
    24.000MHz 37W
    28.100MHz 25W
    29.600MHz 20W
    Package List:
    1 * SSB Linear Power
