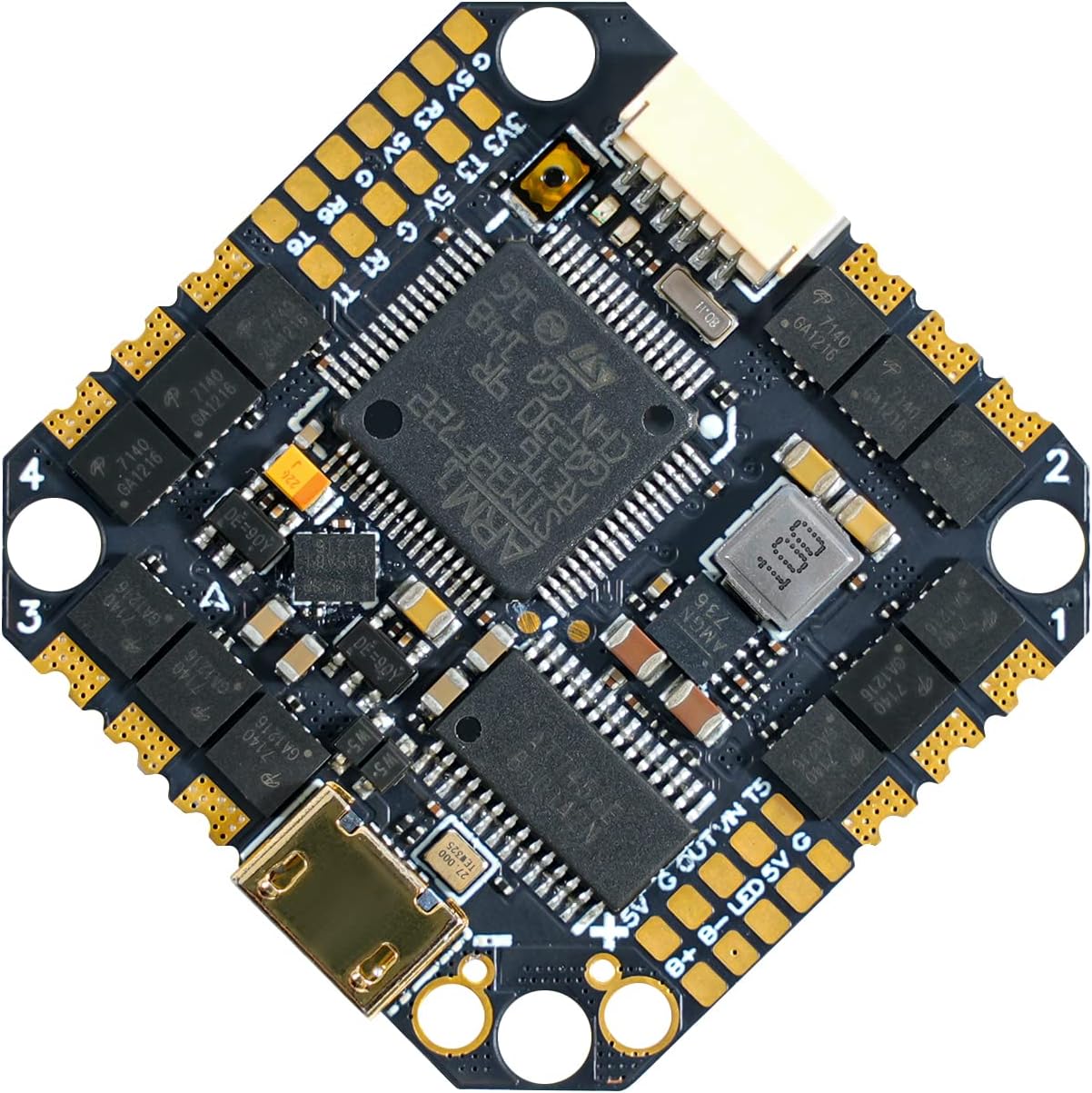

BETAFPV F722 35A 2-6S AIO Brushless Flight Controller V2 with BLHeli_32 ESC No RX with ICM42688 Gyro 16MB BlackBox for 4-5'' Drone Quadcopters

Description:

  • Built-in STM32F722RET6 CPU, F722 FC is more powerful than F4. It features a fast processing speed and stable performance, providing reliable and smooth flight for 4"-5" drones
  • F722 AIO 35A FC has specially added a 6-pin connector for HD Digital VTX, just plug & play, less solder work needed, perfect for the pilots who enjoy the HD Digital VTX system
  • 6 full UARTs are available on this board. With plenty of UARTS, Pilots could have more options for external parts like VTX, GPS, Receiver, and other components
  • It can handle 35A continuous current (40A burst), supports the 2-6S lipo battery, and gives the drone a more robust flight performance.With the 6S battery and this F722 35A AIO FC, the drone will break through the limit of the power of the toothpick drone, exploring more possibilities in 4-5'' drones
  • With the 6S battery and this F722 35A AIO FC, the drone will break through the limit of the power of the toothpick drone, exploring more possibilities in 4-5'' drones
  • The new BLHeli_32 ESC version is built-in a 16MB flash memory chip dedicated to Blackbox logging, which is an extremely powerful tool for tuning and troubleshooting an FPV drone. It has a faster processing speed and up to 128k PWM frequency, providing a more stable and smoother flight for pilots

  • BETAFPV F722 35A 2-6S AIO Brushless Flight Controller V2 with BLHeli_32 ESC No RX with ICM42688 Gyro 16MB BlackBox for 4-5'' Drone Quadcopters

    Specification of FC
    Item: F722 35A AIO Brushless Flight Controller
    Weight: 9.00g (BLHeli_32)
    CPU: STM32F722RET6
    Six-Axis: ICM42688
    Mounting hole size: 26mm*26mm
    Firmware version: betaflight_4.3.0_STM32F7X2
    OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
    Support programmable LED like WS2812 etc
    Built-in current sensor
    Blackbox: 16MB (V2 with BLHeli_32 ESC included)
    Specification of ESC
    Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
    Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)
    Input voltage: 2S-6S Lipo
    Continuous current: 35A
    Peak current: 40A
    ESC firmware: BLUEJAY G_H_30_48_v0.16 (BLHeli_S) / BETAFPV_35A_V2_BLHeli_32_Multi_32_9 (BLHeli_32)
    Indicators: Power indicator (Red) / FC indicator (Blue)
    Capacitance: CS|5*10*13mm|470μF|35V
    Connector: 80mm 14AWG silicone cable with XT60
    Recommended motors: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series

    Package
    1 * F722 35A AIO Brushless Flight Controller (V2)
    1 * Cable Pigtail (XT60)
    1 * Capacitance
    1 * 6-Pin Connector for HD Digital VTX
    4 * M2x10mm Screws
    8 * M2 Nuts

    Details:

    BETAFPV F722 35A 2-6S AIO Brushless Flight Controller V2 with BLHeli_32 ESC No RX with ICM42688 Gyro 16MB BlackBox for 4-5'' Drone Quadcopters
