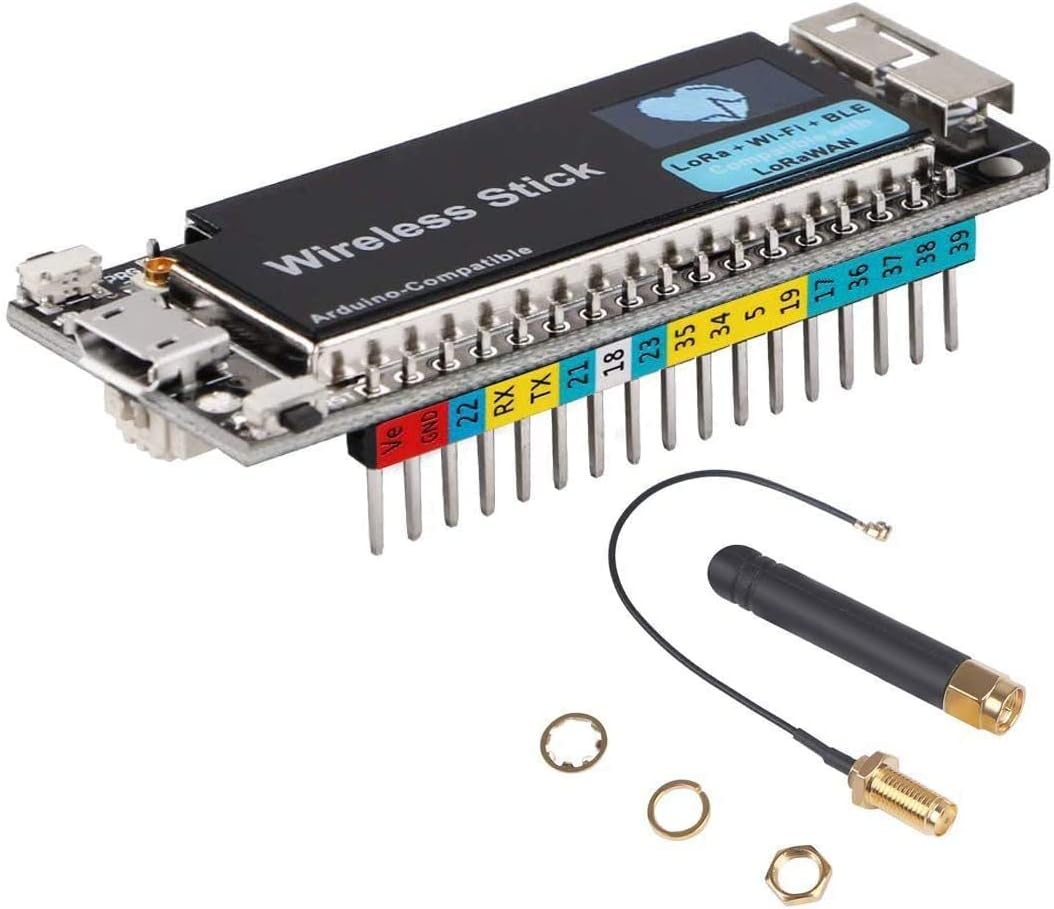

ESP32 Wireless Stick Lora+WIFI+BLE Development board with 0.49inch OLED display screen SX1276 Module For Arduino 868MHz - 915MHz

Description:

  • Compact appearance, powerful computing functions, WIFI function, support for Arduino, rich interface and other product features.
  • users can program the product through standard library and simple development language, and quickly complete program verification and product development.
  • At the same time, it has an OLED display and a lithium battery interface, which can be used for simple management of charging and discharging of lithium batteries, and can be directly used as a development of handheld devices.
  • This product does not directly use the more popular WIFI, LoRa and other modules, but directly based on chip-level development, on the one hand to minimize the size.
  • The product's main control chip is a 32-bit processor - ESP32 chip. In addition to the WIFI function, it also supports BLE 4.2 and powerful LoRa wireless communication functions.

  • Specification:
    Adopt Lexin's ESP32 chip
    32-bit dual-core, 240MHz frequency
    Integrated WiFi and Bluetooth
    LoRA wireless communication
    0.49 inch OLED screen
    The main processor is completely free to run the user application.
    An additional ULP coprocessor that monitors GPIOs, ADC channels, and controls most of the internal peripherals.
    802.11 n (2.4GHz), speed up to 150Mbps
    Bluetooth v4.2 full standard, including traditional Bluetooth (BR/EDR) and Bluetooth Low Energy (BLE)
    Input power: USB, lithium battery
    Output power supply: +5V (only when USB is powered), +3.3V
    Integrated lithium battery charging circuit
    Using an external power supply controlled by IO port, it is convenient for the development board to enter low power consumption

    LoRa:
    Using Semtech's SX1276 chip
    Supports 868MHz, 915MHz band optional

    Interface:
    UART, SPI, I2C, I2S, Mirco SD card
    12 - bits ADC, 8 - bits DAC
    29 general GPIO ports

    Storage:
    FLASH: 64M-BitsMB

    Power consumption:
    Sleep current: 800uA

    Package Included:
    1 x Fasizi ESP32 Wireless Stick SX1276 Development Board ( Not soldered pins+pin stickers)
