Description:
Drain Valve Specification:
Diameter: 2.5inch, Suitable ceramic diameter: 650-700mm
Full drain, half drain is adjustable
Drainage rate: > 2.4L/s
Residual water level: the half-drain residual water level ≥100mm, the full-drain residual water level 40-65mm
Inlet Valve Specification:
Inlet water pressure range: 0.02-2.1mpa
Water supplement range: 0-33%
Inlet flow rate: 0.29L/s
Thread specification: g1/2"
Installation Instructions:
1) Place the lower end of the fill valve into the fill valve hole provided in the pond. The rubber washer should remain inside the pond. Tighten with the plastic nut. Check for leaks.
2) To adjust the amount of water in the pond, turn the plastic adjustment shaft in both directions to raise or lower the float. A higher height will increase the amount of water.
3) Another way to adjust the amount of water is to change the length of the fill valve. To do this, release the adjustment lock downward.
4) Turn the upper part and find the desired height of the fill valve. Once the final height is set, replace the adjustment lock.
5) To install the drain valve, first disassemble it by separating the upper body from the base and turning both in reverse.
6) Pass the metal clip through the pond's drain hole, leaving the rubber separator inside the pond. Then, tighten the adjusting bolt from above with a screwdriver. Check for leaks.
7) Replace the upper body of the drain valve and tighten it. Place the fill valve's fill tube on top of the overflow tube.
8) To adjust the drain valve's water flow:
A - Economy flush: upwards decreases the amount of water, downwards increases the amount of water.
B - Full flush: upwards decreases the amount of water, downwards increases the amount of water.
Warm Tips:
Suitable for split toilets.
Package List:
1 * Drain Valve
1 * Inlet Valve
1 * Switch Button
1 * Rubber Ring
2 * Plastic Screw
Details:
Visit the Nikou Store

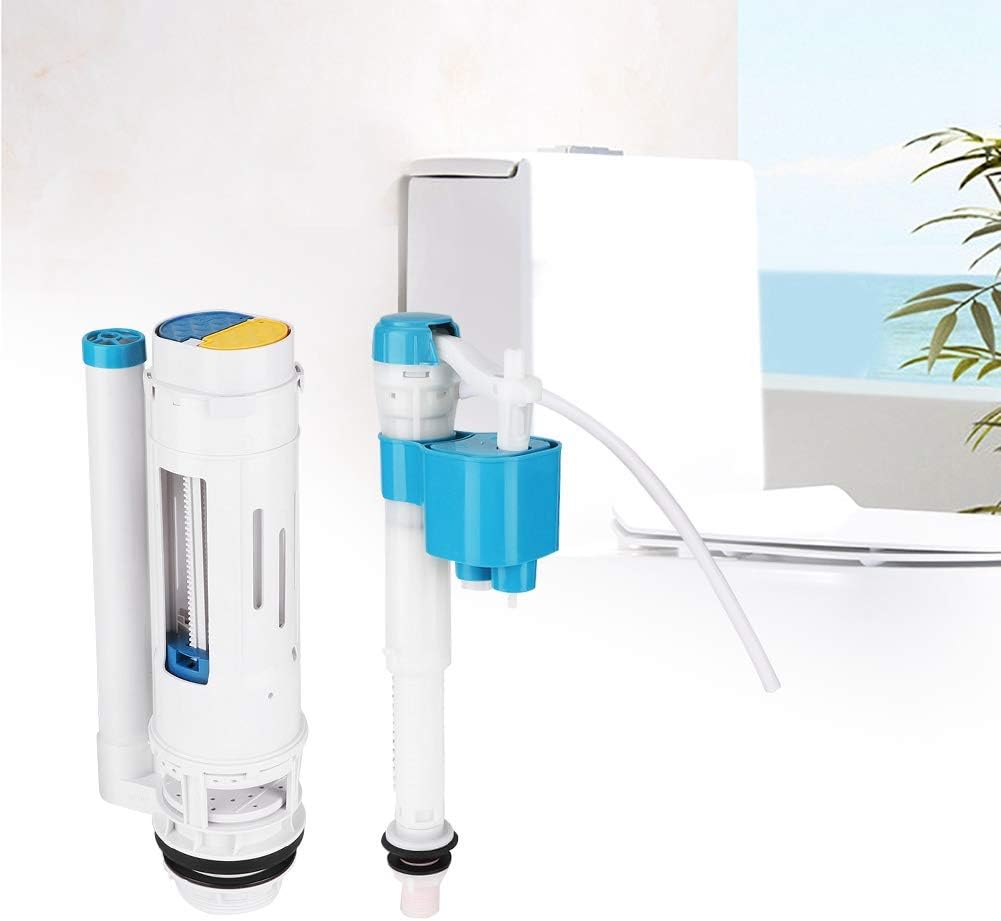

Nikou Universal Water Saving Toilet Repair Kit, Set Water Tank Accessories, Push Button, Valve Replacement, 290mm Complete Toilet Tank Repair Kit Flush
